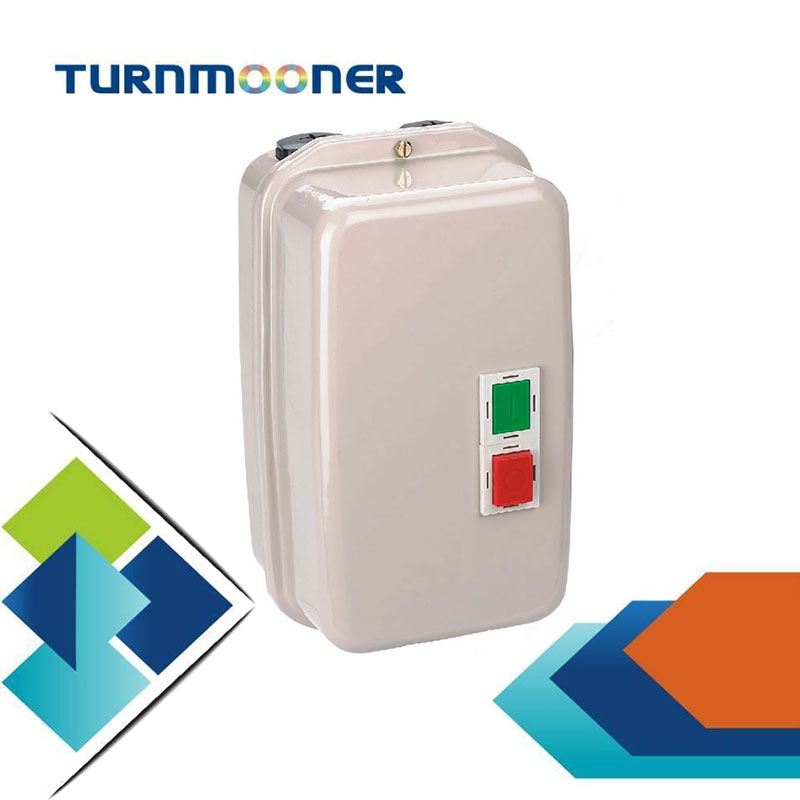

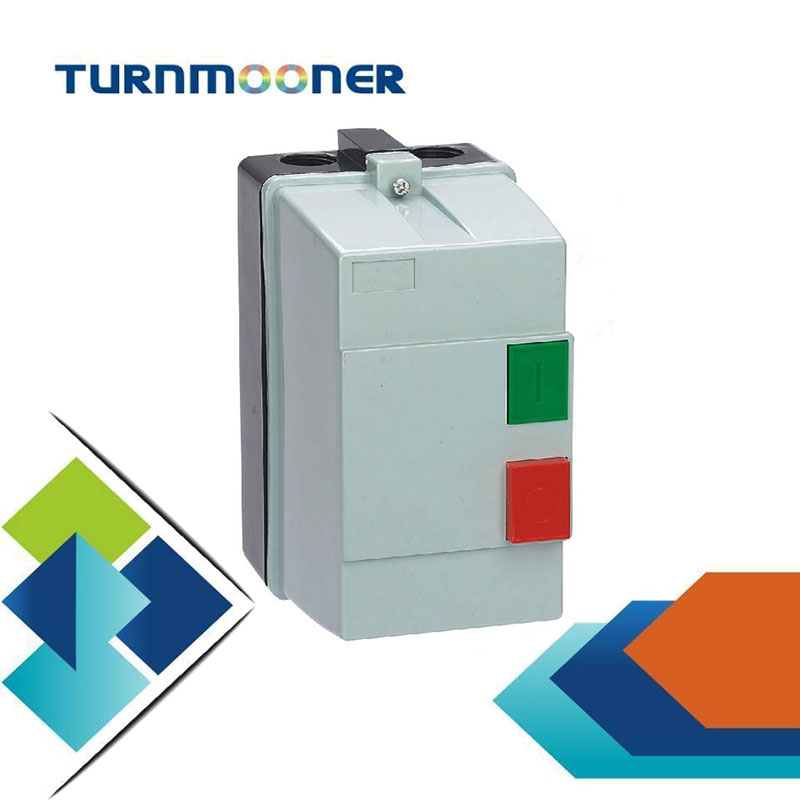

>ZQ1 DOL Electromagnetic Starter

Categories
Industrial Controls Catalogue
MOQ
1
Brand
ZHENGKUN
FOB port
Shanghai port,Ningbo port
Terms of Payment
Western Union,T/T Paypal
Deliverytime
15 working days

description

General

  • ZQ1 series electromagnetic starter ( "starter" for short hereinafter) applies mainly to circuit with AC current of 50Hz (or 60Hz), rated operational voltage of 660V and rated controlled power up to 15kW (current up to 32A) for using to control the direct start and halt of the electromotor to protect the motor from overload and phase failure.

  • The starter conforms to standards IEC/EN60947-4-1

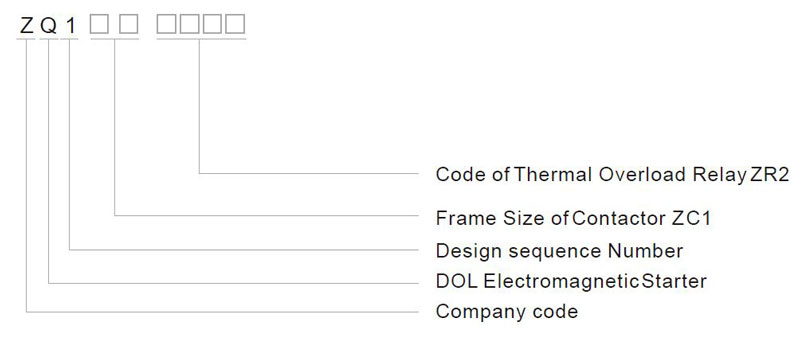

Type Designation


Features

  • 3-phase bimetal

  • Continuously readjustable current settings

  • Temperature compensation

  • Tripping indicator

  • Test button

  • Stop button

  • Manual and automatic reset button

  • Electrically separated 1N/O plus 1N/C contact

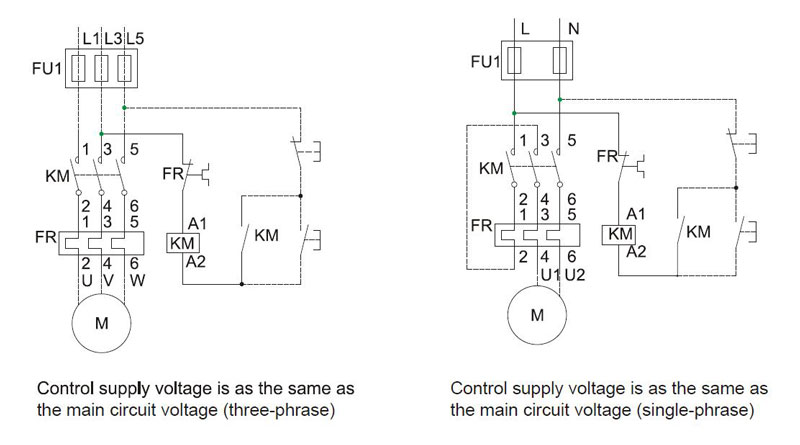

Wiring Diagram



Basic Model and main technical parameter of the starter

ModelRange of setting current Acurrent (A)Maximum rated Power (kW)Model of equipped
AC contactor
TOR matched
AC-3
660V380V220V
ZQ1-09/13010.1~0.1695.542.2ZC1-09ZR2-13
ZQ1-09/13020.16~0.25
ZQ1-09/13030.25~0.4
ZQ1-09/13040.4~0.63
ZQ1-09/13050.63~1
ZQ1-09/13061~1.6
ZQ1-09/13071.6~2.5
ZQ1-09/13082.5~4
ZQ1-09/13104~6
ZQ1-09/13125.5~8
ZQ1-09/13147~10
ZQ1-18/13147~1018107.54ZC1-18ZR2-13
ZQ1-18/13169~13
ZQ1-18/132112~18
ZQ1-25/132112~182515115.5ZC1-25ZR2-13
ZQ1-25/132217~25
ZQ1-32/235323~323218.5157.5ZC1-32ZR2-23
ZQ1-40/335330~40403018.511ZC1-40ZR2-33
ZQ1-50/335737~5050332215ZC1-50ZR2-33
ZQ1-65/335948~6565373018.5ZC1-65ZR2-33
ZQ1-80/336155~7080453722ZC1-80ZR2-33
ZQ1-80/336363~80
ZQ1-95/336580~9395454525ZC1-95ZR2-33

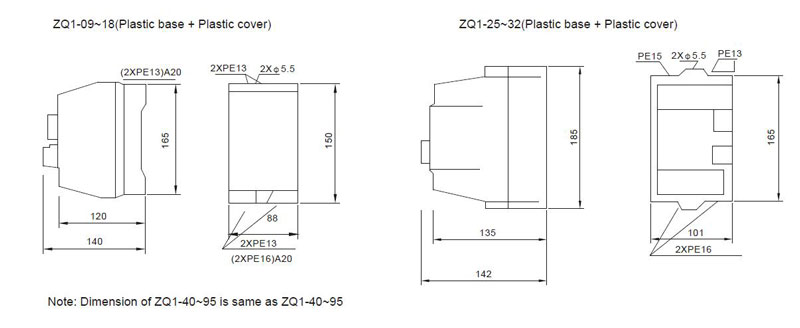

Overall and Mounting Dimensions (mm)
