>ZC1 Contactor 9~95A CJX2-1210

Categories
Industrial Controls Catalogue
MOQ
1
Brand
ZHENGKUN
FOB port
Shanghai port,Ningbo port
Terms of Payment
Western Union,T/T Paypal
Deliverytime
15 working days

description

General

  • Application: remote making & breaking circuits; protect circuit from over-load when assembling with thermal over-load relay;

    frequent start-up and control of AC contactor;

  • Electric ratings: AC50/60Hz, 690V, up to 95A;

  • Utilization category: AC-3, AC-4;

  • Altitude: 2000m;

  • Ambient temperature: -5℃ ~+40℃ ;

  • Mounting category: Ⅲ;

  • Mounting conditions: inclination between the mounting plane and the vertical plane should not exceed ±5° ;

  • Standard: IEC/EN 60947-4-1. IEC/EN 60947-5-1.


  • Control Coil Voltage(AC Coil Operation)

Volts(VAC)24364248110127220230240380415440480500600
Code50HzB5C5D5E5F5G5M5P5U5Q5N5R5-S5Y5
60HzB6-D6E6F6G6M6-U6Q6-R6T6--
50/60HzB7-D7E7F7-M7P7-Q7N7R7---
  • Control Coil Voltage(DC Coil Operation)

Volts(VDC)12243648110220
CodeJDBDCDEDFDMD

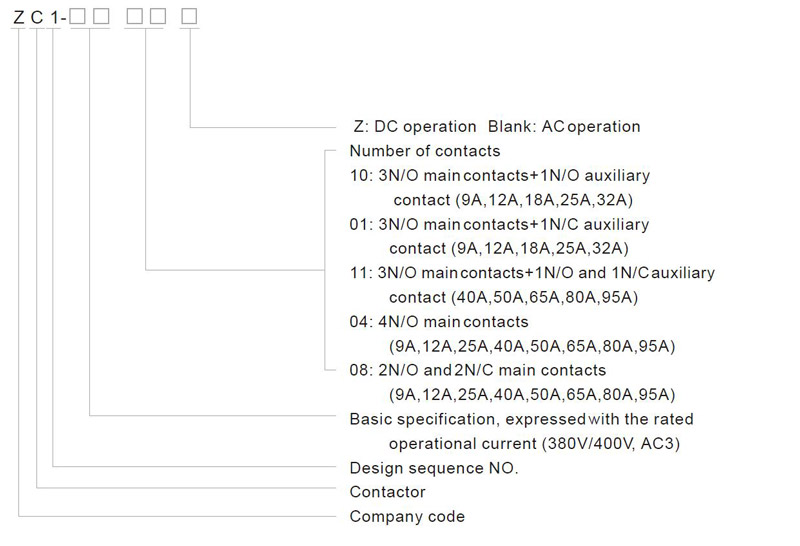

Type Designation

ZC1 Contactor 9~95A-6.jpg

Technical Data

StandardIEC/EN60947-4-1  IEC/EN60947-5-1
Model No.ZC1-09ZC1-12ZC1-18ZC1-25ZC1-32
Rated ConventionalHeating  CurrentIth (A)2020324050
Rated Voltage Ui(V)Ui(V)690690690690690
Rated Operation Current
Ue=380/415V
AC-3   Ie(A)912182532
AC-4   Ie(A)3.557.78.512
Power Controlled 3ph cage Motor
AC-3
220/240V  KW2.2345.57.5
380/415V  KW45.57.51115
660/690V  KW5.57.5101518.5
Electrial life(x103 operations)AC-31000100010001000800
AC-4200200200200200
Mechanical life(x106 operations)101010108
Matched FuseSizeRT16-00RT16-00RT16-00RT16-00RT16-00
A2020324050
Main circuit3P or 4P
Auxiliary circuit Cat.:AC-15,Ue=415V Ie=0.95A Ith=10A1NO or 1NC


StandardIEC/EN60947-4-1  IEC/EN60947-5-1
Model No.ZC1-40ZC1-50ZC1-65ZC1-80ZC1-95
Rated ConventionalHeating  CurrentIth (A)608080100125
Rated Voltage Ui(V)Ui(V)690690690690690
Rated Operation Current
Ue=380/415V
AC-3   Ie(A)4050658095
AC-4   Ie(A)18.524283744
Power Controlled
3ph cage Motor AC-3
220/240V  KW111518.52225
380/415V  KW18.522303745
660/690V  KW3033374545
Electrial life(x103 operations)AC-3800600600600600
AC-4150150150100100
Mechanical life(x106 operations)88866
Matched FuseSizeRT16-00RT16-00RT16-00RT16-00RT16-00
A638080100125
Main circuit3P or 4P
Auxiliary circuit Cat.:AC-15,Ue=415V Ie=0.95A Ith=10A1NO+1NC


Technical Information

Terminal connection

Model

Cabling cross section(Cu)

screw size

Tightening torque(N.m)

Number of piece

Flexible cable with

cold-pressed socket

(mm2)

Flexible cable without

cold- pressed socket

(mm2)

Inflexible cable

(mm2)

ZC1-09

1~2

2.5

4

4

M3.5

0.8

ZC1-12

1~2

2.5

4

4

M3.5

0.8

ZC1-18

1~2

4

6

6

M3.5

0.8

ZC1-25

1

4

10

6

M4

1.2

2

4

6

6

M4

1.2

ZC1-32

1

4

10

6

M4

1.2

2

4

6

6

M4

1.2

ZC1-40

1

10

16

10

M4

3.5

2

10

10

10

M8

3.5

ZC1-50

1

16

25

25

M8

3.5

2

16

16

-

M8

3.5

ZC1-65

1

16

25

25

M8

3.5

2

16

16

-

M8

3.5

ZC1-80

1

50

50

50

M8

3.5

2

25

35

-

M10

4.0

ZC1-95

1

50

50

50

M10

4.0

2

25

35

-

M10

4.0

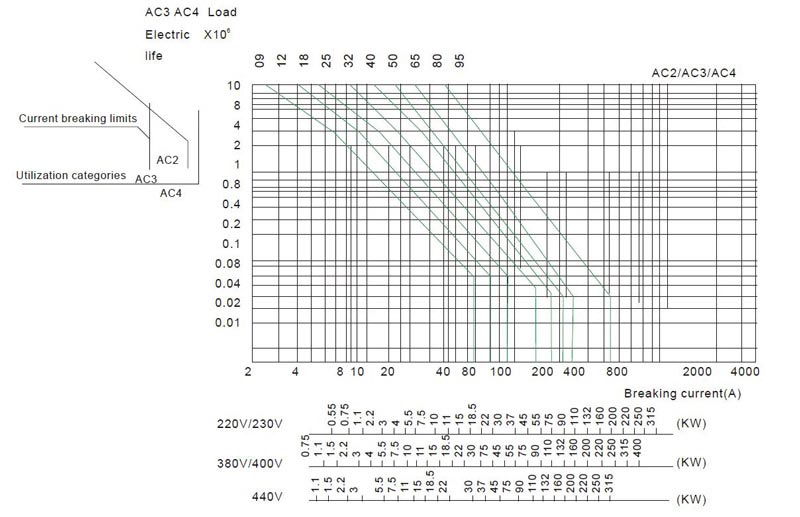

Curves

ZC1 Contactor 9~95A-7.jpg

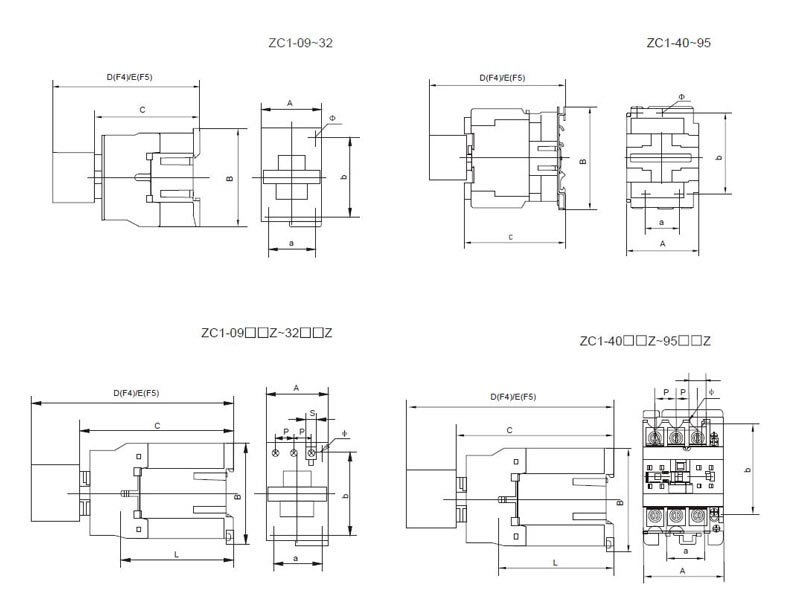

Overall and Mounting Dimensions (mm)

ZC1 Contactor 9~95A-8.jpg

Note:

1. L: in main circuit, the distance between terminals and plate;

2. P: in main circuit, the distance between two phases;

3. S: in main circuit, the width of contacting plate.

ModelA maxB maxC maxD maxE maxabΦLPS
ZC1-09(Z)~12(Z)477682(116)120.5(154.5)140.5(174.5)34/3550/604.560(95)10.58.6
ZC1-18(Z)477687(122)125.5(160.5)145.5(180.5)34/3550/604.561(96)11.310.4
ZC1-25(Z)578695(131)133.5(169.5)153.5(189.5)40484.570(107)13.211.7
ZC1-32(Z)5786100(138)138.5(176.5)158.5(196.5)40484.571.6(120)14.513
ZC1-4011(Z)~6511(Z)77129116(173)154.5(211.5)174.5(231.5)40100/1106.578(135)208.6
ZC1-4004/4008(Z)~6504/6508(Z)84129116(173)154.5(211.5)174.5(231.5)40100/1106.578(135)208.6
ZC1-8011(Z)~9511(Z)87129127(188)165.5(226.5)185.5(246.5)40100/1106.583(140)23.512
ZC1-8004/8008(Z)~9504/9508(Z)96129127(183)160.5(221.5)180.5(241.5)40100/1106.583(140)23.512
