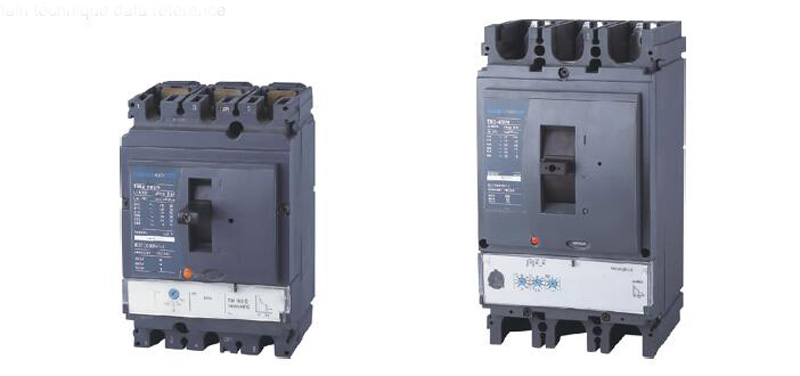

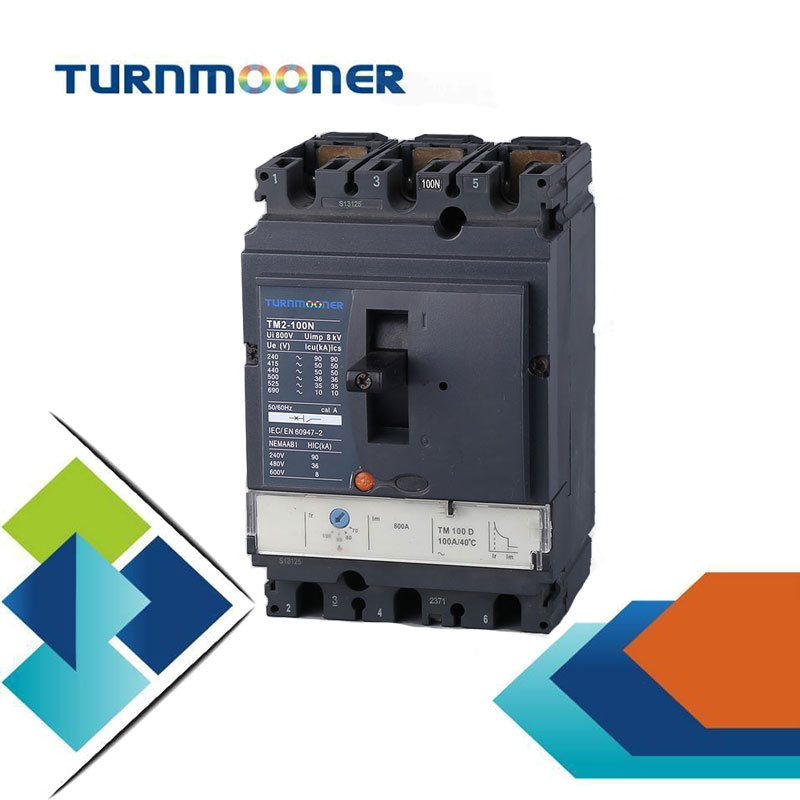

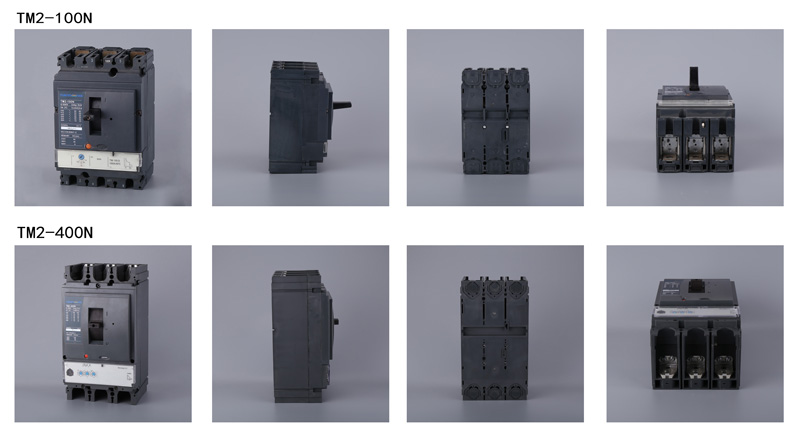

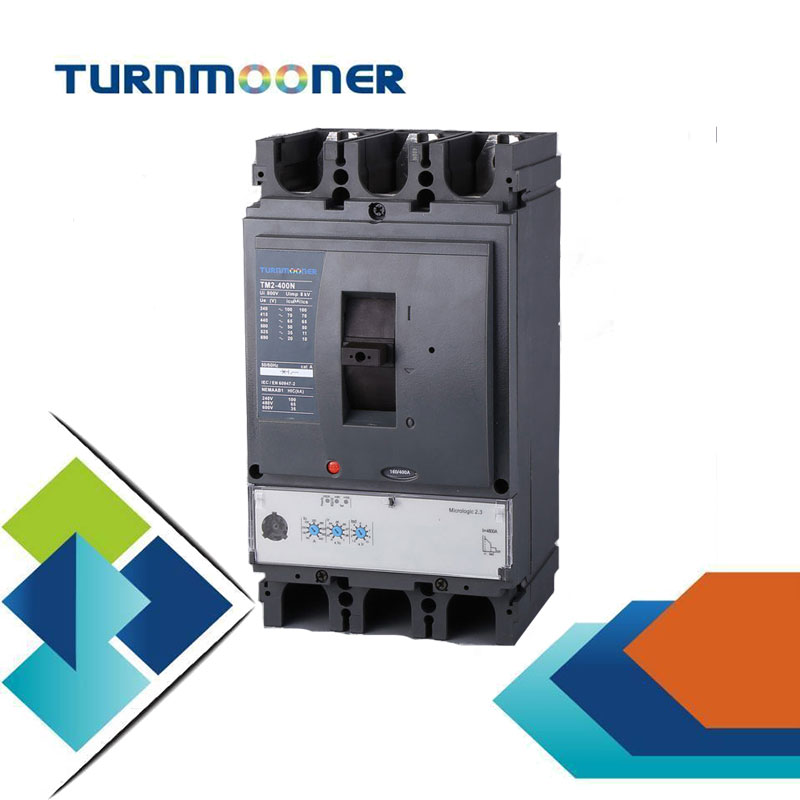

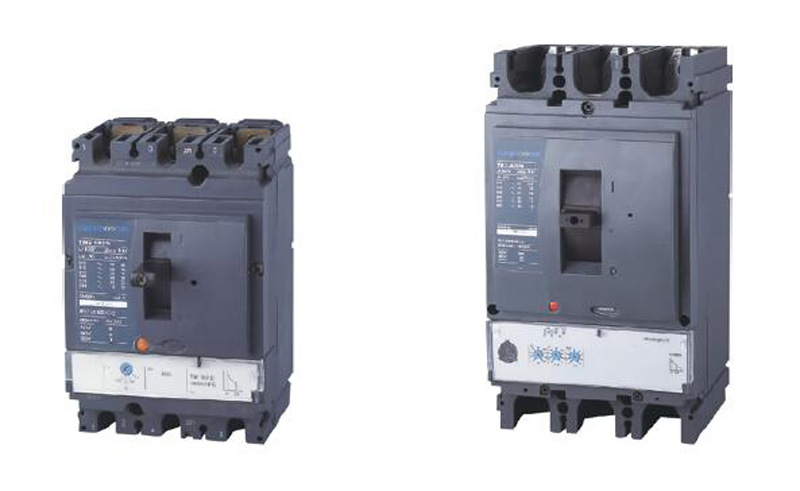

>TM2 Series MCCB

APPLICATION

●TM2 series moulded case circuit breader (hereinafter referred to as circuit breaker)is suitable for circuit of AC 50Hz or 60Hz, rated current 16A~630A, insulation voltage 750V, rated operating voltage 690V below，mainly used for low voltage distribution network to distribute energy and protect circuit and power device against overload, short circuit, under voltage grounding fault and soon. By means of giving the special setting for release , it can be used as starting protection circuit breaker of motor.

●The MCCB can be devided into N;H;L types according to their rated limit short-circuit breaking capacity.

●The MCCB is advantageous for its compact body,high breaking capacity (some even on flying arc),short arc-casting and

superior aseismatic function.

●The MCCB has function of insulation with its mark“ ”

●The product complies with IEC60947-2、GB 14048.2.

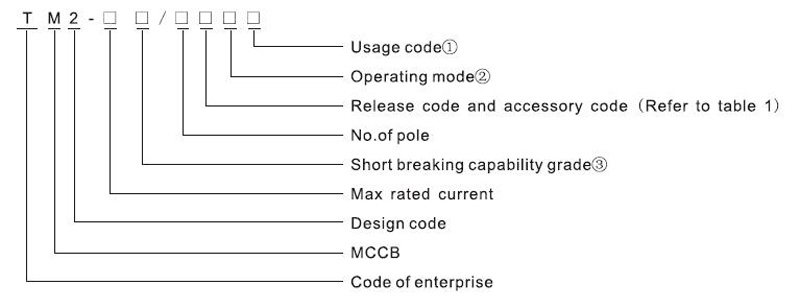

MODEL DESCRIPTION

Note:

①No code for distribution ,"2" denotes motor protection;

②NO code for direct operation by handle; D denotes electric operation; Z denoes rotary handle operation;

③N-Standard type; H-High breaking type; L-Current limiting type.

                                                                                                                                                                                         Table 1

MAIN TECHNIQUE DATA OF MCCB

Mark4:MCCB main technique data reference

TYPE				TM2-100N TM2-100H		TM2-1 60N TM2-160H TM2-160L				TM2-250N TM2-250H  TM2-250L
Rated frame level current Inm(A)				100		160				250
Rated current In(A)				12.5、16、20、 25、32、40、 50、63、80、 100		25、32、40、 50、63、80、 100、125、160				100、125、160、 200、250
Rated insulated voltage Ui(AC V)				690		690				690
Rated impulse-stand voltage Uimp(V)				8000		8000				8000
Rated working voltage Ue(AC V)				400/415		400/415				400/415
Poles				3/4		3/4				3/4
Rated limited shout-circuit breaking capacity level				N	H	N	H		L	N	H		L
Rated limited short-circuit breaking capacity Icu(KA)		400V/415V		20	25	20	60		80	20	60		150
Rated working short circuit breaking capacity Ics(KA)		400V/415V		15	18.75	15	45		60	15	45		115
Operation characteristic (Times)		Connected		1500		1000				1000
		Break		8500		7000				7000
Outlook dimension			L	157		157				157
			W	105	140	105		140		105		140
			H	88	88	88		88		88		88
Weight (g)				2.1	2.8	2.1		2.8		2.1		2.8
Arcing distance ( mm)				0、≤30		0、≤30				0、≤30

TYPE				TM2-400N TM2-400H  TM2-400L				TM2-630N TM2-630H  TM2-630L				TM2-1600N TM2-1600H
Rated frame level current Inm(A)				400				630				1600
Rated current In(A)				200、225、 250、 315、350、 400				350、400、500、 630				500、630、800、 1000、1250、1600
Rated insulated voltage Ui(AC V)				690				690				690
Rated impulse-stand voltage Uimp(V)				8000				8000				8000
Rated working voltage Ue(AC V)				400/415				400/415				400/415
Poles				3/4				3/4				3/4
Rated limited shout-circuit breaking capacity level				N	H		L	N	H		L	N		H
Rated limited short-circuit breaking capacity Icu(KA)		400V/415V		35	45		70	35	45		70	50		65
Rated working short circuit breaking capacity Ics(KA)		400V/415V		26.5	33.8		52.5	26.25	33.8		52.5	37.5		48.75
Operation characteristic (Times)		Connected		1500				1000				1000
		Break		4000				4000				4000
Outlook dimension			L	255				255				370
			W	140		185		140		185		210	280
			H	113				113				196
Weight (g)				8		11		8		11		17.5	23
Arcing distance ( mm)				0、≤50				0、≤50				0、≤80

                                                                                     Table 2(Continue)

Inverse time lag breaking characteristic of circuit breaker for distribution(at ambient air temperature+40℃)

                                                                                                                                                                               Table 3

Inverse time lag breaking characteristic of circuit breaker for motor protection(at ambient air temperature+40℃)

                                                                                                                                                       Table 4

Electic operating mechanism

Electric operating mechanism can be mounted on the front panel of TM2-100 and TM2- 630A circuit breakers , it can realize remote opening，closing adn resetting with 2 or 3 pulses type or self -holding signal , if necessary，the circuit breaker also can realize on-site operation by means of using front panel . Each series of electric operating mechanism module is provided with only one specification that can be applicable for kinds of circuit breakers.

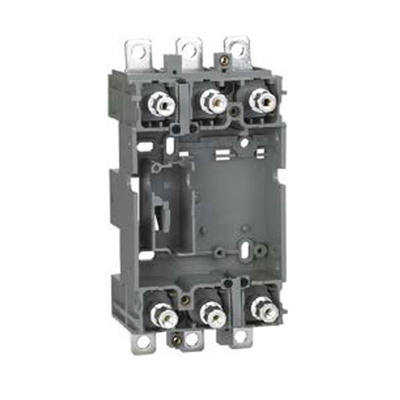

Insert type and with drawable type

insert type and with drawable type:make sure the circuit breaker can be withdrawn or inserted rapidly not need contacting live element , can be used for standby outlet circuit for future extending circuit breaker or connecting wire，besides, can be applied to visual breaking.

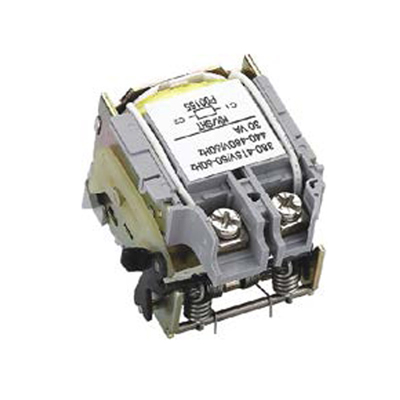

Under voltage releasing coils and shunt releasing coils

The following circuit breakers have respective universal under voltage releasing coils(MN) and shunt releasing coils(MX)

TM2-100/TM2-630

TM2-800~1600

When the rated operating voltage steps down to 70%~35% ,the under voltage release (coils) makes the circuit breaker break; when the control voltage is lower than 35% of rated operating voltage, the under voltage release(coils) can prevent circuit breaker closing ; and when the control voltage is more than 85% of rated operating voltage ,the under voltage release(coils) can make sure the circuit breaker closes reliably.

When the supply voltage is more than 70% of rated control voltage， the shunt release (coils) makes the circuit breaker trip and break reliably.

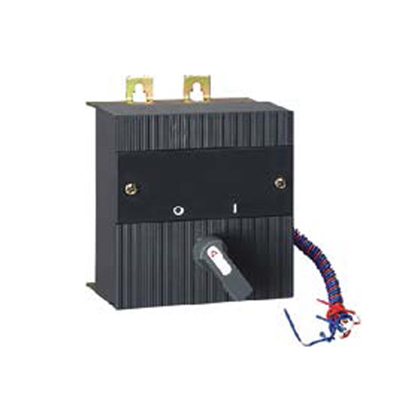

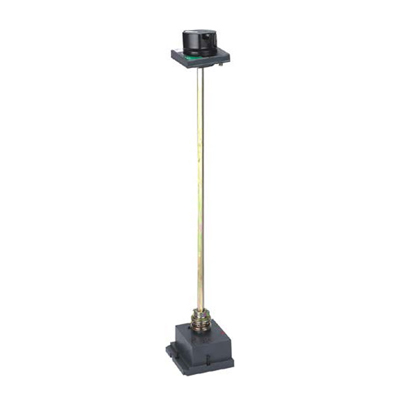

Time belay rotary handle

Time delay rotary handle The time delay rotary handle is mounted for circuit breaker on the switch cabiner, it can be operated with front rotary handle , it has three functions: O (breaking), I (making) and tripping.

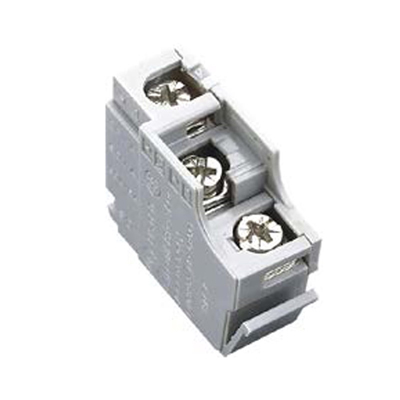

Auxiliary switch

TM2 auxiliary switch is provided with only one nodule , applicable for SNM1 full series circuit breakers , has four functions: On/Off(OF), tripping indication (SD), fault display (SDE) and grounding fault display (SDV).

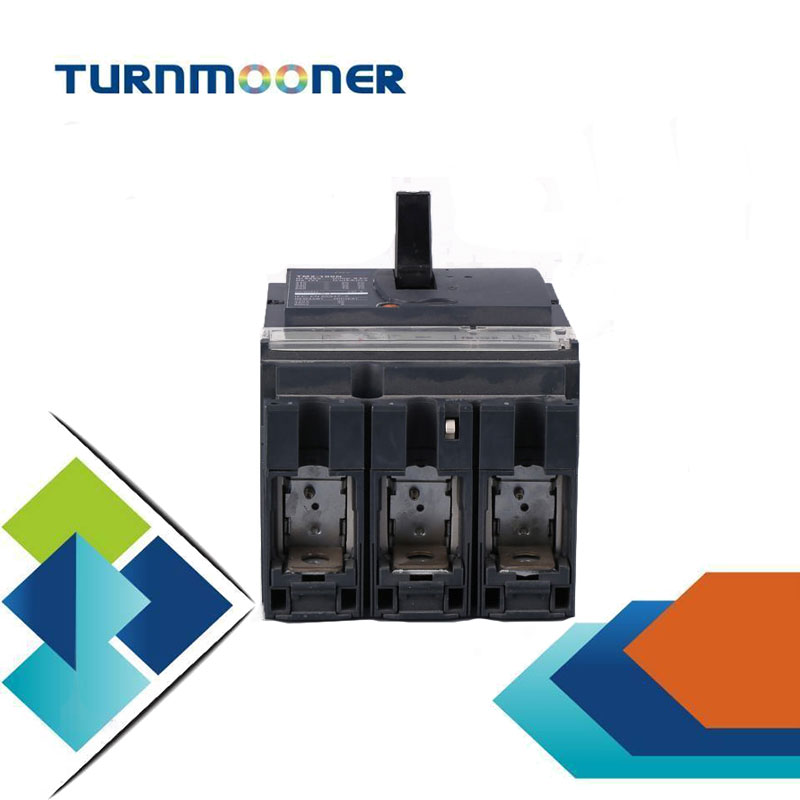

Link accessory

Provided with many kinds of linking types, in cluding bare cable ,fore wire or rear wire for cable lug as well as insertion type or with drawable type wires, furthermore, there are a set of connecting accessories installed for circuit breaker rapidly.
